As a responsible brake pads manufacturer, we care about your business and your safety even more.
Developed specifically for daily driving situations and provide optimal and reliable stopping performance, excellent fade resistance, low dust, and stable friction performance across a wide temperature range for most vehicles.
Premium Formulation
Positive Mould
Laser-Cutting Plates
Woven Shims
Post Cured
Slotted
Chamfered
Low Copper

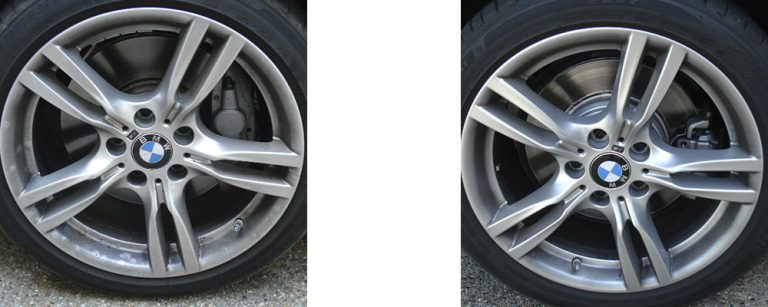

The dust amount of OE pads after 1,000km mileage
The dust amount of Yijing semi-metallic pads after 1,000km mileage
Designed specially to bring a wide range of coverage for middle to high-end vehicles. According to the various daily driving conditions, delivers in the industry, superior performance, noise-free, durability and fade resistance.
Positive Mould
Laser-Cutting Plates
Under Layer
Rubber-Steel-Rubber Shims
Post Cured
Scorched
Slotted
Chamfered

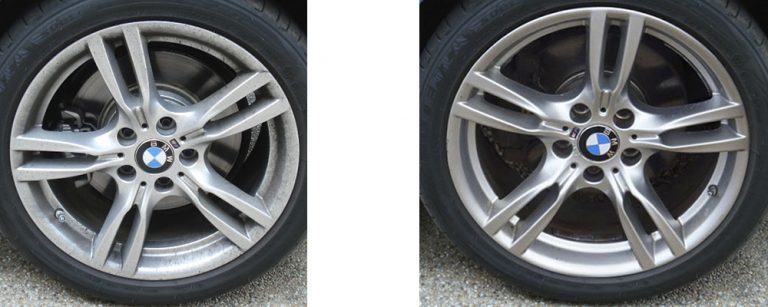

The dust amount of OE pads after 1,000km mileage
The dust amount of Yijing ceramic pads after 1,000km mileage

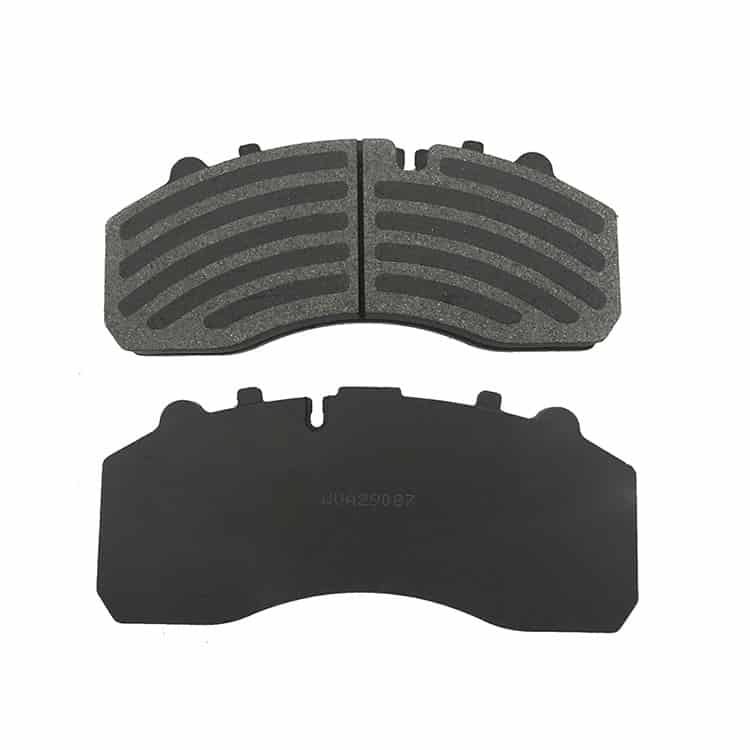

Designed Specifically for big load commercial vehicles, towing and hauling for various challenging and demanding driving conditions including mountain roads. Deliver exceptional stopping power, superior fade resistance, extended service life and quiet comfortable driving experience.
Semi-Metallic
Positive Mould
Laser-Cutting Plates
Rubber-Steel-Rubber Shims
Post Cured
Slotted
Chamfered
Scorched
Designed for various daily hardworking vehicles .Deliver best in class performance, quiet, low dust and durability.
We always choose the finest materials for consistent performance even under various extreme braking conditions.
Friction materials play an important role in the brake system since brakes use friction to brake (decelerate and stop). We always choose the finest materials for consistent performance even under various extreme braking conditions.

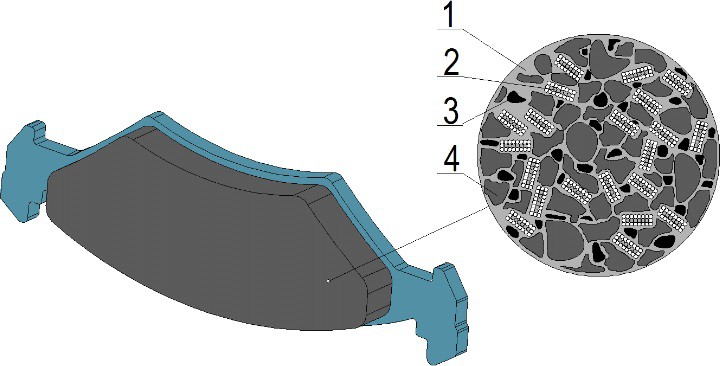

Disc brake pads and drum brake shoes are made from a blend of 10 to 20 kinds of raw materials. Depending on their specific roles, the raw materials are divided into 3 categories: “binders”, “reinforcement & fillers”, and “friction adjustment material.”
Binders are the materials that keep all of the pads’ components together. This material must have a stable and high friction coefficient, be resistant to high temperatures and fast temperature changes, and be light in weight. Mainly phenol resin or modified resins is used currently.
Reinforcement is a fibrous material that is added to the binder to increase its mechanical qualities. Various kinds of organic and inorganic fibers, such as aramid fibers and metal fibers, are used. Fillers are utilized to fill the gaps between the brake pads’ other components.
The friction adjustment material mainly produces and modify the coefficient of friction. They are used for strengthening the effectiveness or stabilizing the performance of friction materials. Various raw materials, such as lubricants, organic fillers, inorganic fillers, abrasive material, and metal powder, are blended as necessary.
Positive Molding Technology is an important factor in production of Yijing Brakes products.
Positive molding machine has 4 cylinders, each cylinder works against one cavity with uniform pressure, to compress the friction material and bond it to the backing plate. This process assures consistent friction material density throughout the pad, resulting in even wear and performance characteristics throughout the life of the brake pad.
It also allows using less resin content in the formulation of the brake pad which can lead to improvement in the fading characteristic of the brake pad. The brake pads produced by the positive molding process are proven to have much better-stopping performance, noise-free and long pad life.
Features
Yijing products are made with this positive molding technology. It not only reduces the complexity of mold replacement, and improves labor efficiency, but also effectively avoids the problem of the inconsistent density of brake pads caused by feeding error.

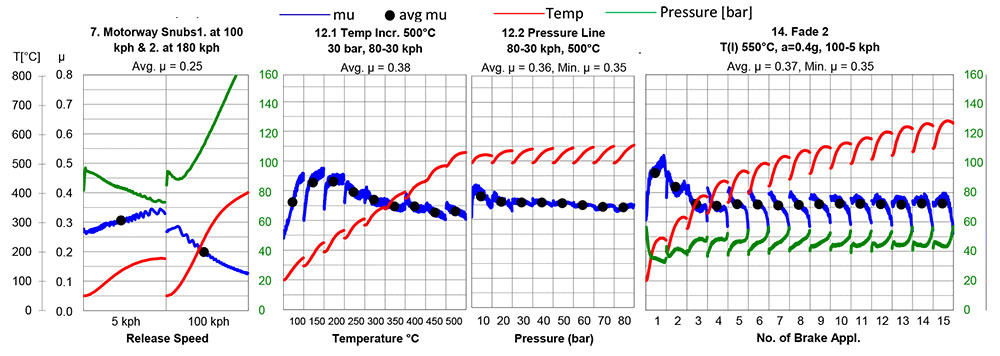

Dynamometers with the latest technology imported from LINK, by simulating various extreme pressures, special high temperature, and repeatedly braking, conduct various testing day and night.
Including:
● Performance(SAE J2522, AK Master)
● Noise Suppression(SAE J2521)
● Wear(SAE J2707)

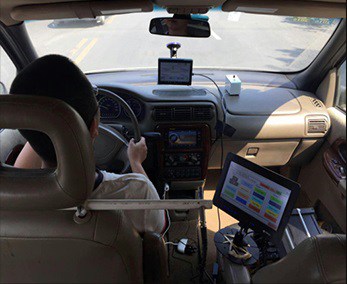

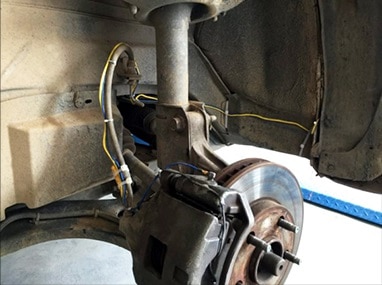

Equipped with STAC EventScan In-Car System, Yijing Brakes products installed on various vehicles are tested under all road conditions including some steep hill areas with temperature up to 650, verifying and further confirming the performance, noise and wear.
